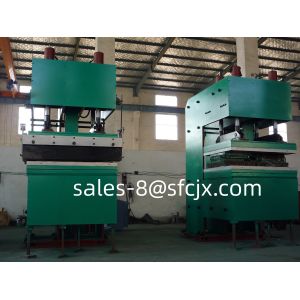

Cooling System Integration Sidewall Belt Rubber Vulcanizing Press Machine Customization
Frank Zhang
business manager
sales-8@sfcjx.com
The cooling system can be seamlessly integrated into the overall design of the press machine. It can be positioned within the press structure, adjacent to the heat plates, or in a separate section depending on the machine's layout and design. The integration ensures efficient heat transfer and cooling of the vulcanized sidewall belts
Heating Methods: Vulcanization requires the application of heat to the rubber compound. Different machines employ various heating methods such as steam, electric heating elements, or hot oil circulation systems. The heating method used can affect the efficiency and control of the vulcanization process
Pressing Systems: The machines incorporate pressing systems to apply pressure to the rubber compound in the mold during vulcanization. Hydraulic or mechanical presses are commonly used for this purpose, providing the necessary force to shape and consolidate the rubber
Cooling System: After the vulcanization process, the sidewall belt needs to be properly cooled to set the shape and structure. Some machines have built-in cooling systems that use water or forced air to accelerate the cooling process
Size and Capacity: The size and capacity of sidewall belt vulcanizing press machines can vary depending on the width and thickness of the belts being produced or repaired. Machines are available in different sizes to accommodate various sidewall belt dimensions
The technical parameters for some models frame vulcanizing machines:
| Product Model | XLB-1300x2000 x1 | XLB-1500x1500x1 | XLB-1500x2500x1 | XLB-2000x2000x1 |
| Total Press (MN) | 5.60 | 8.00 | 15.00 | 20.00 |
| Plate Size(mm) | 1300x2000 | 1500x1500 | 1500x2500 | 2000x2000 |
| Plate Daylight (mm) | 400 | 800 | 400 | 400 |
| Working Layer | 1 | 1 | 1 | 1 |
| Piston Stroke(mm) | 400 | 800 | 400 | 400 |
| Unit Press(Mpa) | 2.2 | 3.6 | 4.0 | 5.0 |
| Main Motor Power(kw) | 8 | 16.5 | 11 | 11 |
| Overall Size(mm) | 2000x1860x2500 | 2200x2200x4300 | 3000x2500x3300 | 3600x3000x3300 |
