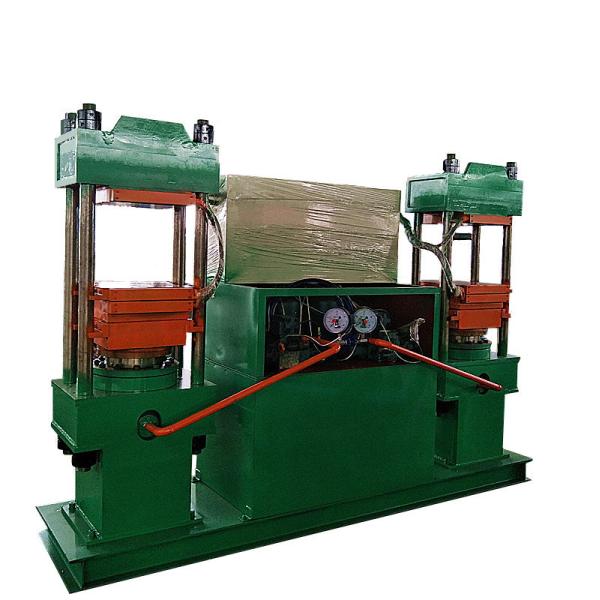

Company Direct Supply Duplex Curing Press & Double-Unit Vulcanizing Machine
Production Overview
Two host machines can run simultaneously or separately, providing flexible production capabilities.
Technical Specifications
| Model |
Total Pressure (Ton) |
Plate Size (mm) |
Daylight (mm) |
Piston Stroke (mm) |
Hydraulic System Pressure (Mpa) |
Cylinder Diameter (mm) |
Motor Power (KW) |
Overall Dimensions (L×W×H) (mm) |
| XLB-600×600 |
250 |
600×600×65 |
300 |
300 |
19.9 |
400 |
5.5×2 |
1200×580×1200 |
| XLB-650×650 |
300 |
650×650×70 |
350-500 |
350 |
19 |
450 |
7.5×2 |
1880×820×1680 |
Application
The machine applies to sulfurizing various kinds of rubber and plastic model products as well as non-model products.
Key Features
- Moving bolster
- Buffering device for blanking
- Photo-electric protection device
- Digital display and control
- Industry touching screen monitor
- Oil heating or cooling device
- Ejecting device
- Safety device for slider
- Heating and temperature control
Electrical Control System
Complete control system including wiring, cables, and safety protection devices. Uses automatic time relay to achieve automatic close mold, exhaust, stuffy, vulcanization time, supplement pressure, and open mold working processes. Easy switching between automatic and manual control.
Production Capacity
This rubber tiles vulcanizer features 4 working layers, capable of producing 8 pieces of rubber floor per hour. Working layers can be customized according to customer needs. Includes manual push-out device and supports molds from 20mm to 75mm thickness.
Machine Advantages
- Simple and convenient structure with flexible operation and commodious space
- Cylinder and plunger made from high-quality materials
- Hydraulic station and electric cabinet located on both sides of main engine
- Convenient operation
- No oil spilling or pressure loss
- CE Standards and ISO9001 SGS Certifications
Delivery & Payment
Delivery Lead Time: 35-40 days after receiving deposit
Packing Method:
- Wrapped with stretch film to prevent surface paint damage
- Custom wooden packaging available
- Key parts (electronic control box) wrapped with shockproof materials and packed in wooden cases
Payment Terms: T/T (30% deposit, 70% balance against B/L); L/C
Our Services
- Overseas service and technical support
- Timely machine dispatch
- 24-hour online service with immediate response
- Machine testing available to ensure customer satisfaction
- Custom design, drawing services, and OEM rubber machines
- Shipment arrangement with 7-day advance notification
